ByteDance Unveils Astra: A Revolutionary Dual-Model Framework for Self-Navigating Robots

Robots are leaving labs and entering homes, hospitals, and warehouses, but navigation in crowded, repetitive, and changing indoor spaces still trips them up. ByteDance’s Astra proposes a dual-model framework that splits “think” and “react” into two coordinated brains. The result is a system that reads images and language, builds a semantically rich global map, and plans safe trajectories in real time.

Here is a clear overview of what changes for teams deploying mobile robots today.

In a hurry? Here’s what matters:

How Astra’s Dual-Model Architecture Answers “Where am I? Where am I going? How do I get there?”

Modern fleets in facilities like “MetroCart Logistics” face three recurring questions: self-localization, target localization, and local motion. Traditional pipelines chain small modules or rules, which struggle in look-alike corridors or when instructions arrive as natural language. ByteDance’s Astra reframes the stack as two cooperating models: Astra-Global (low-frequency, high-level reasoning) and Astra-Local (high-frequency, near-field control).

This separation follows a System 1/System 2 pattern. The global model absorbs images and language to ground the robot on a map and interpret goals like “deliver to the nurse station near Radiology.” The local model then plans and re-plans trajectories at control rates, fusing sensors to avoid carts, people, or temporary barriers. Together, they cut the long tail of brittle behaviors that plague conventional systems in offices, malls, and homes.

From brittle modules to two coordinated brains

Rather than tuning a half-dozen small models, Astra compresses capabilities into two robust networks. The global component reduces ambiguity by anchoring goals to semantic landmarks, while the local component keeps motion safe and smooth even when the map is partially wrong. When a hallway is blocked, Astra-Local adapts; when a destination is only described in text, Astra-Global translates words to map coordinates.

• 🧩 Modular clarity: global reasoning stays stable; local control stays agile.
• 🗣️ Language grounding: natural-language tasking works without manual waypoints.
• 🛡️ Risk reduction: fewer rule clashes and less overfitting to single buildings.
• ⚙️ Maintainability: updates land in two models instead of many brittle scripts.

What changes in day-to-day operations

In a hospital, a nurse can say “pick up supplies from the storage room next to ICU-3,” and the global model links that phrase to a mapped semantic node. In a warehouse, Astra-Local handles on-the-fly dodges around pallets while staying on a collision-minimized path. Over a fleet, this reduces human interventions and helps planners forecast throughput more accurately.

Insight: separating global reasoning from local reflexes removes the core tension that makes legacy pipelines fragile under change.

Inside Astra-Global: Multimodal Localization with a Hybrid Topological-Semantic Map

Astra-Global is a multimodal model that ingests images and language to determine both the robot’s current pose and the destination. Its context is a hybrid graph built offline: nodes as keyframes (with 6-DoF poses), edges encoding connectivity, and landmarks carrying semantic attributes like “reception desk” or “elevator bank.” This map gives the model both a skeleton of where one can move and the meaning of places.

How the graph is built and used

The mapping pipeline downsamples video into keyframes, estimates camera poses with SfM, and constructs a graph G=(V,E,L). Landmarks are extracted per node by the model and linked via co-visibility, creating redundancy that helps in similar-looking corridors. In operation, the model runs a coarse-to-fine procedure: first, candidate landmarks and regions are matched; then fine estimation picks a precise node and outputs pose.

• 🧱 Nodes (V): time-sampled keyframes storing 6-DoF poses.
• 🔗 Edges (E): undirected links that support global route options.
• 🏷️ Landmarks (L): semantic anchors such as “ICU-3 sign” or “loading dock door.”

For language-based targets, Astra-Global parses text like “nearest charging bay by the west exit,” identifies relevant landmarks by function (charging bay, exit signage), and then resolves to the best node-image pair with a pose.

Training recipe: SFT + GRPO for zero-shot strength

Built on a Qwen2.5-VL backbone, Astra-Global is trained first with supervised fine-tuning (coarse/fine localization, co-visibility, motion trend) and then with Group Relative Policy Optimization using rule-based rewards. That second stage enforces response format, correct landmark recovery, and right node-map matches. The result is strong zero-shot generalization, reaching ~99.9% localization accuracy in unseen homes, according to internal evaluations.

• 🎓 SFT: diverse tasks stabilize outputs and teach format.
• 🏆 GRPO: reward shaping locks in consistent visual-language grounding.
• 🧭 Robustness: maintains accuracy under viewpoint shifts and near-duplicate scenes.

For teams evaluating alternatives from OpenAI-style instruction-following to classical VPR, this hybrid graph plus reinforcement tuning is the key differentiator in ambiguous interiors.

Insight: semantic landmarks turn look-alike hallways into unique addresses that a language-capable model can reference reliably.

Inside Astra-Local: 4D Spatio-Temporal Perception, Safer Planning, and Accurate Odometry

Where Astra-Global decides “where,” Astra-Local decides “how.” It replaces multi-block perception stacks with a 4D spatio-temporal encoder that transforms omnidirectional images into future-aware voxel features. On top, a planning head generates trajectories with Transformer-based flow matching, and an odometry head fuses images, IMU, and wheel readings to minimize drift.

4D encoder: seeing now and anticipating next

Astra-Local starts with a 3D encoder: Vision Transformers process multiple camera views, and Lift-Splat-Shoot converts 2D features into voxel space. A differentiable neural renderer supervises geometry. Then, a temporal stack (ResNet + DiT) predicts future voxel features, giving the planner context about moving obstacles and probable free space.

• 📦 Omnidirectional input: fewer blind spots for close-range hazards.
• ⏩ Future voxel prediction: anticipatory planning rather than purely reactive motion.
• 🧰 Self-supervised geometry: reduces dependency on dense labels.

Planning: flow matching with collision-aware losses

The planner uses the 4D features, robot speed, and task hints to output a smooth, feasible trajectory. A masked ESDF loss penalizes proximity to obstacles using a 3D occupancy map and a 2D ground-truth mask, a combination that proved to lower collision rates relative to ACT and diffusion policy baselines in out-of-distribution tests.

• 🛡️ Masked ESDF: smarter distance penalties reduce close shaves.
• 🧮 Transformer flow matching: efficient trajectory sampling under uncertainty.
• 🚀 OOD resilience: better transfer to new buildings and layouts.

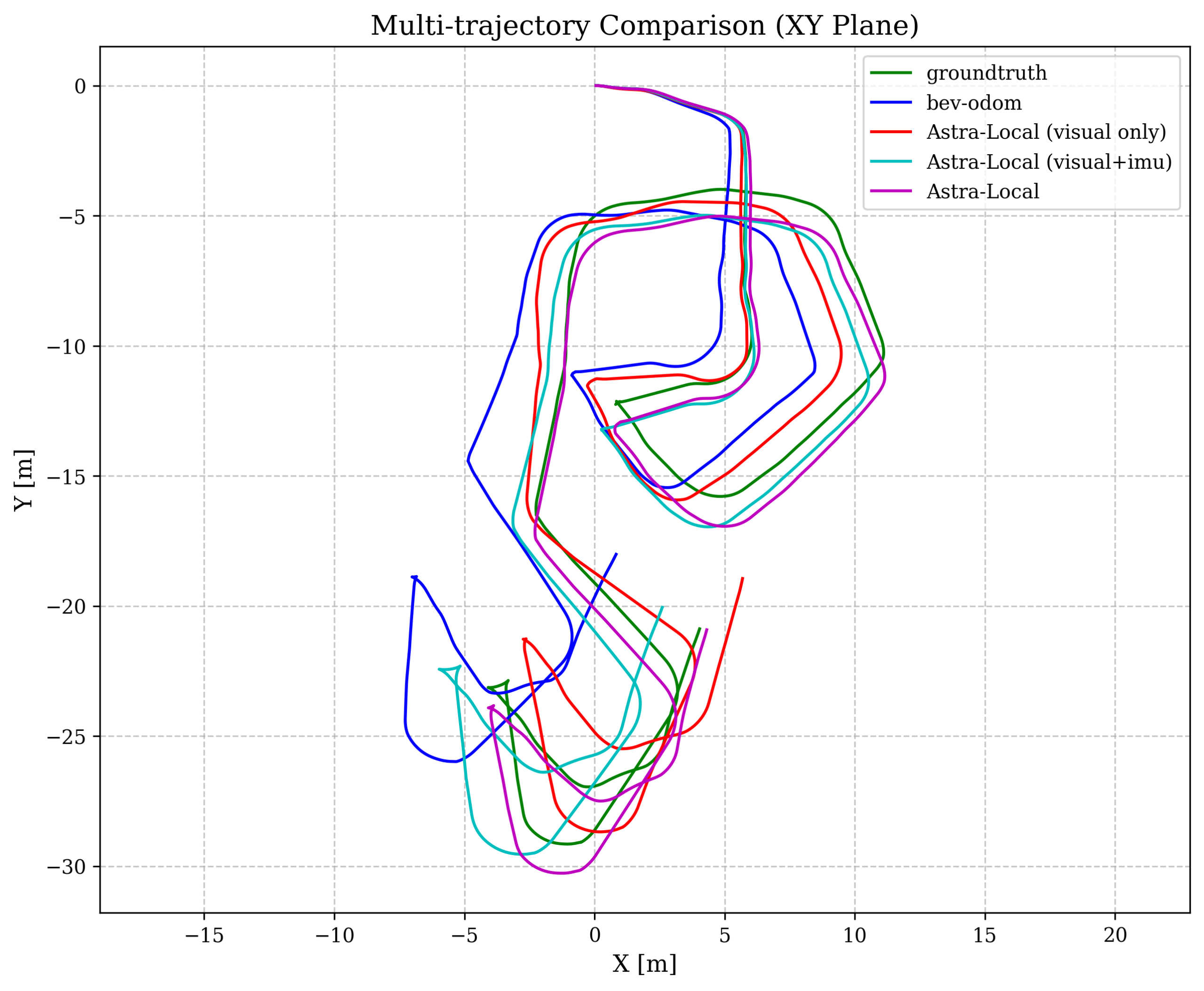

Odometry: multi-sensor fusion that holds scale and rotation

Pose estimation uses tokenizers for each sensor stream, modality embeddings, and a Transformer encoder ending with a CLS token for relative pose. Fusing IMU data drastically improves rotational accuracy, while wheel data stabilizes scale, driving trajectory error near ~2% on mixed indoor sequences.

• 🧪 Case in point: a “Leaf & Latte” café robot threads between chairs at rush hour without bump-and-reverse behavior.
• 🧭 In cramped storage rooms, rotation accuracy prevents compounding drift on tight turns.
• 🧰 Maintainable: one encoder replaces several perception modules.

Insight: the 4D encoder + ESDF loss combo pushes planning into a predictive regime, cutting risk where humans walk and work.

Evidence from Warehouses, Offices, and Homes: Metrics, Fail Cases, and Fixes

Evaluations span warehouses, offices, and homes—spaces with repeating textures, furniture rearrangements, and frequent occlusions. In localization, Astra-Global beats traditional visual place recognition by leveraging semantic landmarks and spatial relations; in planning, Astra-Local reduces collisions and improves overall scores versus ACT and diffusion policies on out-of-distribution layouts.

What the numbers mean on the floor

In a MetroCart Logistics trial aisle, room numbers and signage are small but decisive cues. Where global-feature VPR mismatches similar-looking corridors, Astra-Global detects fine-grained landmarks and keeps pose error within ~1 m and 5°. In a home-test, text prompts like “where is the resting area” resolve to the right images and 6-DoF poses, supporting natural voice-based tasking.

• 🧩 Detail capture: landmark-level features reduce false matches in repetitive halls.
• 🔄 Viewpoint robustness: stable under large angle changes that break VPR.
• 🧭 Pose accuracy: better fit to node-landmark geometry, improving route selection.

For planning, a hospital corridor at “St. Aurora” is a moving field of beds and carts. Astra-Local’s masked ESDF loss yields fewer near-wall passes and smoother speeds, lowering nurse complaints and near misses. In a residential demo, weaving around toys and chairs, the system shows fewer dead-ends and less oscillation at doorway thresholds.

• 🛠️ Observed fail: feature-scarce corridors can confuse single-frame localization—temporal reasoning is on the roadmap.
• 🧭 Observed fail: maps compressed too tightly may drop key semantics—alternative compression methods are planned.
• 🔁 Robustness plan: integrate active exploration and smarter fallback switching when confidence dips.

Insight: strong results come from pairing semantic global context with predictive local control—not from inflating any single module.

Deployment Playbook for 2025: Hardware, Integrations, Safety, and Industry Fit

Rolling out Astra means pairing the models with hardware and safety practices already familiar to robotics teams. On compute, NVIDIA Jetson-class edge modules are a natural fit for multi-camera pipelines, while discrete GPUs on mobile bases handle peak loads in larger facilities. Integration flows through ROS2, with Astra-Global exposed as a localization/goal service and Astra-Local as a planner and odometry node.

Ecosystem and vendor landscape

Platform vendors will slot in differently. Boston Dynamics could leverage Astra-Global for higher-level goal grounding on Spot-like platforms, while Fetch Robotics fleets adopt Astra-Local to improve aisle safety around pallets. ABB Robotics and Honda Robotics can align mobile manipulators with semantically grounded goals. For consumer and service robots, iRobot and Samsung Robotics gain more reliable room naming and routing in clutter.

• 🤝 ROS2-first: topic and service interfaces keep integration predictable.
• 🧠 Instruction following: combine Astra-Global with LLM stacks from OpenAI for richer tasking, with Astra-Local executing safely.
• 🧩 Sensors: multi-cam + IMU + wheel encoders are a sweet spot for Astra-Local’s fusion.

Safety, privacy, and maintainability

Safety relies on layered controls: certified e-stops, speed caps near people, and confidence-aware handoffs to simple fallback controllers. Privacy is addressed by on-device processing and encrypted map storage. Maintainability improves because updates affect two core models instead of many narrow modules, and fleet telemetry focuses on confidence scores and collision margins.

• 🪜 Start small: pilot a single floor with Astra-Global mapping and Astra-Local planning.
• 🧪 Validate safety: test masked ESDF margins with staged obstacles and bystander dummies.
• 📈 Scale up: roll to night shifts first, then mixed-traffic hours once confidence holds.

Roadmap items—OOD robustness, tighter fallback switching, and temporal aggregation for localization—make Astra a candidate not just for specific buildings but for city-wide, multi-site fleets.

Insight: deployment succeeds when semantics, planning, and policy confidence flow through ROS2 like any other well-behaved node.

Why Astra Matters Beyond One Company: Standards, Competition, and the Road to General-Purpose Mobility

ByteDance’s release lands in an ecosystem chasing general-purpose mobile robots. The dual-model pattern formalizes a boundary many teams already observe: global cognition vs. local reflex. It also provides a common vocabulary for benchmarks and safety reviews—landmarks, node associations, ESDF margins—that integrators can audit. That clarity matters as regulations tighten around human-robot interaction in public spaces.

Positioning among leading players

Companies like Boston Dynamics have mastered physical reliability; Astra provides semantic grounding and language-native goals to complement that hardware. ABB Robotics and Honda Robotics can tie mobile manipulators to named workstations without QR codes. Consumer players like iRobot and Samsung Robotics can gain robust “room naming” without elaborate beacons. With NVIDIA edge acceleration and optional OpenAI-style instruction stacks, the glue is right where many teams already build.

• 🧠 Global semantics: removes the need for dense artificial landmarks.
• 🦾 Hardware synergy: complements legged, wheeled, and hybrid bases.
• 🧪 Reproducible tests: ESDF margins and pose errors translate across sites.

What will define winners in 2025

Winners will ship fleets that can be dropped into new buildings with minimal remapping and no brittle rules. That means investing in map compression that keeps the right semantics, in temporal reasoning to survive low-feature zones, and in policies that expose confidence so humans can supervise without micromanagement. Astra’s coarse-to-fine global search and predictive local planning are practical steps toward that goal.

• 🛰️ Short-term: ship pilots that measure pose error, ESDF margins, and human handoffs.
• 🏗️ Mid-term: add temporal localization and active exploration for feature-scarce zones.
• 🌍 Long-term: standardize semantic tags across sites to share maps and policies.

Insight: a dual-model standard gives integrators a stable contract: global semantics in, safe local motion out.

What makes Astra different from traditional navigation stacks?

It consolidates many brittle modules into two models: Astra-Global for multimodal self/target localization using a semantic-topological map, and Astra-Local for predictive planning and accurate odometry. The split preserves high-level reasoning while keeping low-level control fast and safe.

Can Astra run on common edge hardware?

Yes. Teams typically target NVIDIA Jetson-class modules for multi-camera pipelines and can scale to discrete GPUs for larger facilities. ROS2 integration keeps deployment straightforward.

How does Astra handle natural-language instructions?

Astra-Global grounds text to semantic landmarks and map nodes via a coarse-to-fine visual-language process, returning target images and 6-DoF poses that Astra-Local can navigate to.

Is Astra compatible with existing robots?

The architecture is robot-agnostic. Platforms from Boston Dynamics, Fetch Robotics, ABB Robotics, Honda Robotics, iRobot, and Samsung Robotics can integrate via ROS2, provided suitable sensors (multi-cam, IMU, wheels) are present.

What are the main limitations to watch?

Single-frame localization can struggle in feature-scarce or highly repetitive areas, and tight map compression may drop semantics. The roadmap includes temporal reasoning, active exploration, and better fallback switching.
